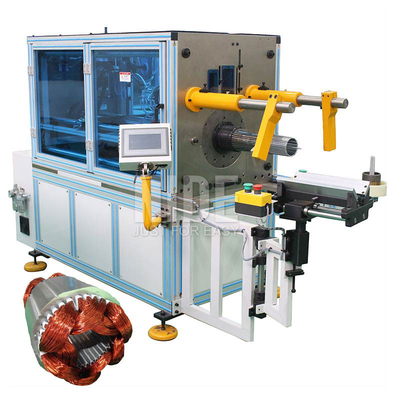

This stator winding inserting machine adopts AC servo motor driving system, AC frequency conversion speed regualtion system, pneumatic system. It is used for coils and wedge automatical inserting process. This winding inserting machine can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.
The system is operated by a heavy duty pneumatic cylinder with a controlled smooth movement of operation for the coil inserting sequence.It is very compact and can easily be sited on a work bench therefore not taking up valuable floor space.Loading of coils is quick and simple.The stator winding inserting machine takes the headache out of manual coil insertion.
stator winding inserting machine running process
Technical parameter:
Stator I.D 110~210mm
Stator O.D 175~300mm
Stator stack length ≤250mm
Slot number range 16~48 slots
Appropriate wire 0.2~1.2mm
Input 380V/50Hz
Power source 380/50/60Hz4Kw
Dimension 1000*2000*2000mm
Weight about 1850kg
.
Application:
It is suitable for stators applicated in single phase motor, three phase motor, compressor motor, starter motor, washing machine motor, air condiction ect.
Machine main function and characteristic
With horizontal frame design, controlled by industrial programmable PLC. It is used for winding and wedge automatically inserting.
It adopts AC servo motor driving system, AC frequency conversion speed regulation system, pneumatic system.
It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section. Wedge feeding mode can be set according to different motor.
Euipped with human-machine control interface, it has the function of status display, malfunction alarm, various parameters setting etc.
It has the characteristic of widely application, high automation, easy operation and convenient tooling change.
Information needed for stator winding inserting machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Wire connection drawing
4. Stator application
5 Required productivity
6 Other technical requirement
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
