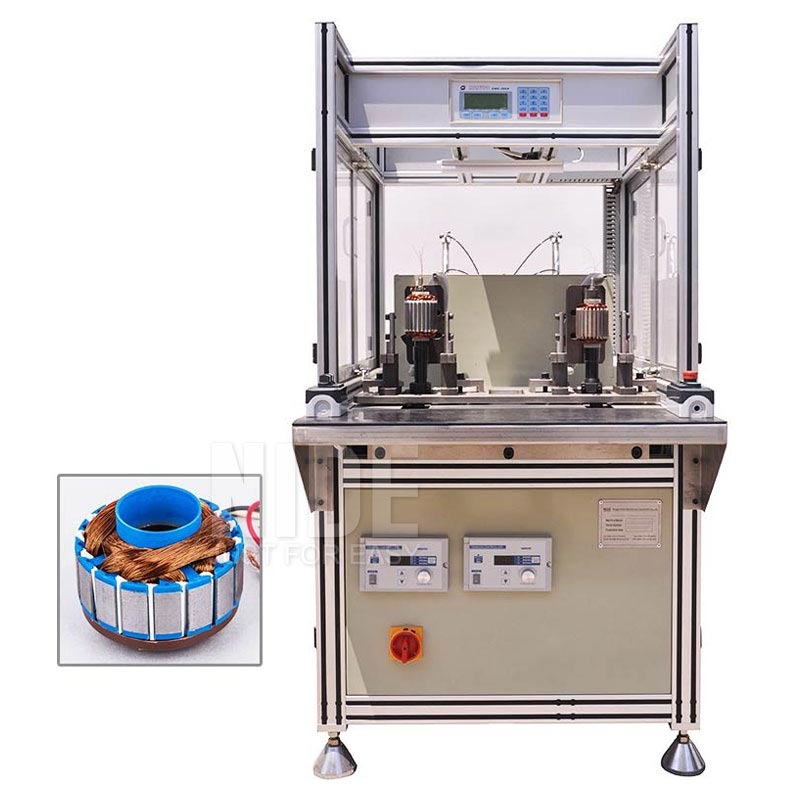

Single flyer Double stations BLDC External Rotor Winding Machine
Introduction:
This bldc winding machine is sutiable for bldc external armature coil winding.The parameter, such as turn No., wire clamping indexing angle, rotor direction, etc., can be set on the HMI. Adapts Single flyer winding, double working stations, automatically wire clamping, manually feeding.
The BLDC motor external rotor winding machine has self-diagnose function
Specification:
| Production name: | BLDC rotor coil winding machine |
| Dimension: | 870X560X1600(LXWXH) |
| rated speed: | 700rpm |
| Air pressure: | 0.4~0.7MPa |
| Power: | 3KW |
| Max. speed : | 2000rpm(no-load) |
| Weight: | 350KG |
| Voltage: | phase AC380V |
provide our customers with full package of optimized solution to motor manufacturing.
Motor armature rotor manufacturing assembly line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine, ball bearing inserting machine, and worm shaft inserting, NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
