Factory automatic stator coil winding and inserting machine for 3 phase motor

Full automatic three stations stator coil winding and inserting machine

(1) Machine Main Feature
The stator coil winding and inserting machine is designed for three phase motors. Mainly used for winding and coil inserting for three phase motor, motor with tapping; abopt servo system, 4 station or 6 station design, can complete 3 phase coil winding , wedge cutting, coil insertion, phase insulation paper insertion etc. Has remote control function, can be integranted into auto line, double driving system for coil insertion, auto stack heighe adjustment, support Ipad operaion.

The winder and inserting machine can wind the three groups of wires at the same time and increases the two places for insulating paper, results in the function of inserting wires and increase the phase insulation simultaneous, and reduce manual work after, the winding machine are used servo motor drive to ensure the machine's operation is accurate and stable,adopts double power line to insert the coil , can meet the production of high slot full rate products.

This stator coil winding and inserting machine is can do coil winding, coil inserting and wedge inserting. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer. This machine can detect the wire coating damage. The winding and inserting station is controlled by servo motor. The parameter can be set in the touch screen.

With serval station working simultaneously, this winding and inserting machine is efficiency and saves labor cost.

(2)Application
The three stator coil winder and inserting machine is Sutiable for three phase motors,such as a variety of machine tools, lifting machinery, pumps, fans, all kinds of production machinery, power drainage irrigation, agricultural and sideline products processing equipment, etc.

(3) Main technical data

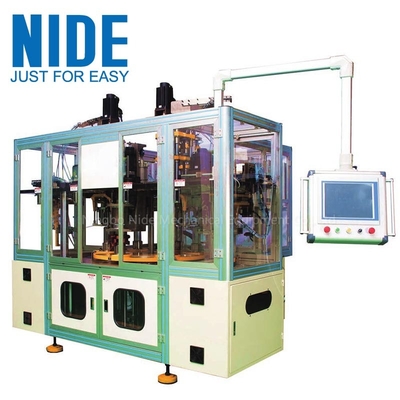

(4)The winder and inserting machine picture show

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
