stator winding inserting machine
Quick Detail:
Description:

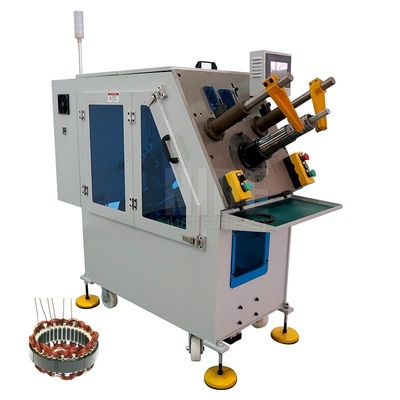

This machine is suitable for inserting coil and wedge into stator by servo system; This type of Stator Winding Inserting Machine can insert coil and wedge or coil and wedge in the mid of slot into stator at a time;wedge feeding is to be done bt stepping motor,and coil and wedge inserting is by servo system; different parameter could be set in human-machine interface;the speed and feeding mode is acquirable according to different slot filling rate and different kind of wire.
Applications:
This machine can insert the winding/coil and the wedge/top cover into the stator slot simultaneously. This machine is used for induction motor stator which meet the specification in the below table. It is suitable for micro induction motors such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.
Specifications :
|
Max stator O.D |
160mm |
|
Stator I.D |
20~100mm |
|
Max stator stack length |
120mm |
|
Slot number range |
8~48 slots |
|
Max winding feeding rate |
80% |
|
Appropriate wire |
Copper wire/Aluminum wire |
|
Power source |
380V/50Hz |
|
Air source |
0.5-0.8MPa |
|
Machine productivity |
400pcs/ 8 hours |
|
Machine Dimension |
1800mm × 650mm × 1700 mm |
|
Weight |
about 1000Kg |
Competitive advantages:
Simple operation, fast speed and high automation, the wedge and winding is inserted simultaneously. Labor cost saving. PLC and touch screen control.
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
