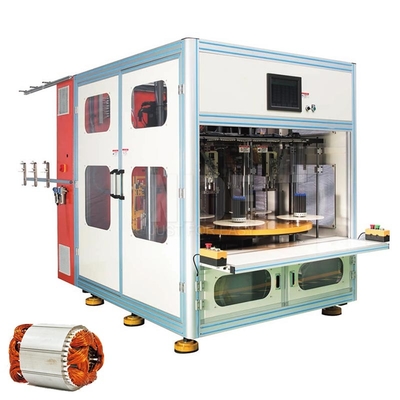

(RXL2-160S) Full automatic 4 working stations stator coil winding machine for electric motor
| Prouduction name: | stator coil winding machine |
| Wire diameter: | 0.18~1.2mm |
| Flyer diameter: | 400mm |
| Max stack height: | 160mm |
| Max stator OD: | 200mm |
| Max RPM: | 1800RPM |
| Air source: | 0.6-0.8MPa |
| Operation station: | 4 |
| Winding head: | 2 |
| Power supply: | 380V 50/60HZ 7.5KW |
| Weight: | about 2000KG |
| Dimension: | (L)2600*(W)2200*(H)2200mm |
(4)Picture show
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
