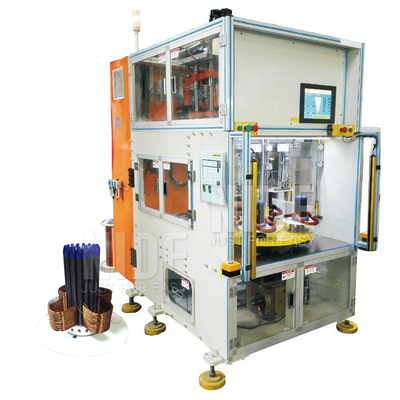

Washing machine motor stator automatic motor coil winding machine
(1) Main technical data
Winding head: 2pc
Wire diameter: 0.18~1.2mm
Winding speed: ≤2500RPM
Max stack OD: 200mm
Max stack height: 150mm
Fly fork diameter: 400mm
Transfer number: 1~5 section
Power supply: 380V/50/60HZ 7.5KW
Weight: about 2000kg
Dimension: L1900*W1100*2100mm
(2) Application:
This motor winding machine is suitable for 2 poles, 4 poles and 6poles coils winding.
(3) Machine main function and characteristic
This motor stator winding machine has two winding heads with four working station. The main phase and auxiliary phase can be wound simultaneously. It is suitable for high production capacity, high slot filling rate, small slot opening stator coil winding. Different winding mode can be selected in the touch screen, like auto skip, auto cutting and auto indexing.
Other parameter also can be set in the touch screen, like continuous/discontinuous winding method.
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
