Automatic Factory Motor Wind Turbine BLDC Stator Needle Coil Winder Equipment

1.0 Sets
MOQ
Automatic Factory Motor Wind Turbine BLDC Stator Needle Coil Winder Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Other
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: Brazil, India
Product Name: BLDC Motor Needle Winding Machine
Certification: Main Electric Components Are CE Certificated.
Working Stations: 2
Color: Customized
Used For: BLDC Motor Stator Coil Making
Winding Method: Needle Winding
Type: Fully Automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Voltage: 380V
Weight: 500kg
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Turkey, United States, Italy, Viet Nam, Brazil, India, Mexico, Thailand, Argentina, South Korea
Basic Infomation
Certification: Main electric components are CE certificated.
Payment & Shipping Terms
Packaging Details: The auto stepper motor stator winding machine is Suitable for sea transportation
Supply Ability: 800 Set/Sets per Year
Product Description
Product Description

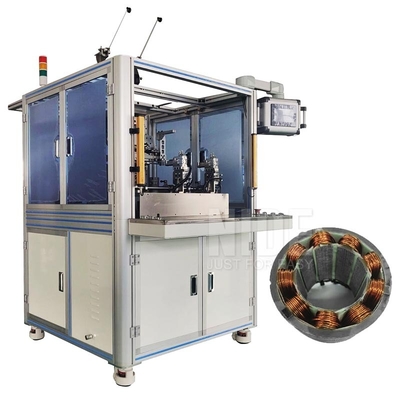

Automatic Motor winding machine BLDC Stator Needle Coil Winder equipment

(1). Introduction

The automatic electric motor stator coil winding machine adopt advanced needle winding technology
It is used for the BLDC motor manufacturing, adopts a double-station design for multi-pole stator coil winding.
Multiple tap (can be set by screen), wire clamping and wire cutting can be realized during winding process.
Each action cycle will wind 2 stators at the same time, Only manual loading is required, the coil winding machine automatically clamps the mold, which reduces the labor intensity and greatly improves the production efficiency. The number of slots and the number of turns can be set by man-machine interface;
All aluminum alloy (anodizing treatment) plus imported acrylic protection;
Electrical control ,setting and display by PLC, display and servo motor ,
It is very safe and reliable.
(2). Technical Parameters
Product name:
Automatic brushless DC motor stator needle winding machine
BLDC Stator ID:
φ25-φ60 mm (Other specifications can be specially designed)
BLDC Stator OD:
φ60-φ200 mm (Other specifications can be specially designed)
Wire diameter:
φ0.13-φ1.2 mm(Other specifications can be specially designed)
BLDC stator stack length:
10-80mm(Standard stroke)
100-200mm(Long stroke, special customization)
Spindle speeds:
0--800 RPM (adjustable)
Applicable pole number:
multipolar
Winding working stations:
2
Winding method:
needle winding tecnology
Voltage:
380V/50HZ Three phase four wires
Air pressure:
0.5--1MPa
Power:
20KW
Servo mechanism:
One 3KW Indexing Motor
One 3KW Winding Motor with Brake
750W or two wiring motor
Cycle time:
Depending on the winding parameters
Noise:
Below 60-70 decibels
Weight:
550KG
Dimension:
1100*1300*1700mm(Length * width * height)

(3). Function and Characteristics:

1,Full aluminum alloy protection
2,PLC control, fault display
3,Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
4,Equipment safety index: accord with CE standard.
5,For multi-pole BLDC stator coil winding, manual loading and unloading, automatic clamping, winding and shearing;
6,Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
7,Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
8,The frame adopts thickened 4080 aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.
9,The wire tightness is moderate, no injury, no breakage, ect.
10,Quick change-overof tooling;(20 minutes with proficiency)

(4). Application

The BLDC stator needle winding machine is especially suitable for range hood motor, stepper motor, fan motor, Ceiling fan
motor,bladeless fan motor, brushless power tools, hair curler motor, servo motor, brushless household motor, brushless medical equipment and other types of DC brushless motor.
(5). Picture show
Recommend Products
Packing&Shipping
After Sales Service
Customerized service
1. Customized product design and manufacturing
2. Customized tranning
3. Technical suggestions
After-sales service
1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas
QC and R&D
Certifications
Company Introduction
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
