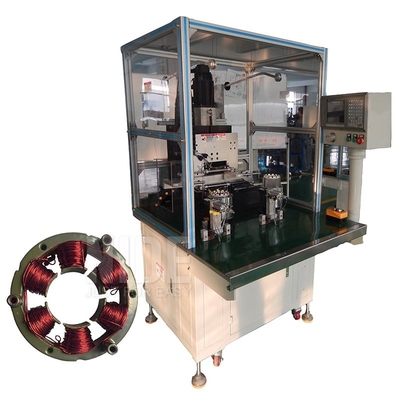

Two station BLDC stator inslot coil winding machine
(1) Technical parameter:
Suitable OD:≤250mm
Suitable ID;≥55mm
Suitable thichness: 10~200mm
Suitable wire diameter:0.3-1.4mm
Power supply: 220V/ 50/60Hz
Weigth:750Kg
Deminsion:1400*1000*2000mm
(2) Application:
This BLDC stator inslot coil winding machine is suitable for BLDC(brushless DC motor) stator winding.
(3) Machine function and characteristic:
This BLDC stator inslot coil winding machine equips with servo system. It can automatically do intertwine end, winding, arraying, indexing, cutting, demolding process. It is of high efficiency.
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries such as Germany, U.K, Spain, Italy, Turkey, Brazil, Argentina, Mexico, etc. Among the customers, many of them are the world-renown companies.
Customerized service | 1. Customized product design and manufacturing |
2. Customized tranning | |
3.Technical suggestions | |
After-sales service | 1. Warranty Period: 12 month usually |
2. Overseas service center available | |
3. Engineers available to service overseas |
