(1) Machine function and characteristic:
This motor rotor winding machine is designed for the Blower motor BLDC armature rotor coil winding. The automatic rotor winder adopts needle winding method. Each action cycle will wind 2 BLDC rotor at the same time, greatly improved production efficiency. And the motor needle winder equipped with the servo control system, able to diagnose the fault, count the output etc. The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed, easy for operation and maintenance.
(2) Application:
The motor coil winding machine is suitable for Blower motor armature and other BLDC external rotor.
(3)Function and Characteristics:
1. The motor needle winding machine is sutiable for multi-pole BLDC armature coil winding. Manual loading and unloading, automatic clamping, winding and shearing.
2. The frame adopts thickened 4080 aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.
3. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
4. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
6. Quick change-overof tooling;(20 minutes with proficiency)
7. Full aluminum alloy protection
8. PLC control, fault display
9. The wire tightness is moderate, no injury, no breakage, ect.
10. The salt test of the product is carried out within 10 mA in one minute.
11. Equipment safety index: accord with CE standard.
12. Efficiency: 120 rev / min.
13. Beat: 5 minutes / BLDC rotor.
14. Noise: 60-70 decibels or less.
(4) Technical parameter:
|
Product name: |
BLDC armature rotor coil winding machine/ Needle winder |
|
Type: |
Automatic |
|
BLDC Armature I.D.: |
20-80mm (Other specifications can be specially designed) |
|
BLDC Armature O.D.: |
50-120mm(Other specifications can be specially designed) |
|
BLDC Armture stack length: |
10-80mm(Standard stroke) 100-200mm(Long stroke, special customization) |
|
Wire dia.: |
0.5-1.5mm(Other specifications can be specially designed) |
|
Applicable pole number : |
multipolar |
|
Motor winding mechod : |
Needle winding |
|
Winding stations : |
Two |
|
Spindle speeds : |
0--300 RPM (adjustable) |
|
Servo mechanism: |
Two 4.4KW Indexing Motor One 3KW Winding Motor with Brake 750W or so two wiring motor |
|
Voltage: |
380V/50HZ Three phase four wires |
|
Air pressure: |
0.5--1Mpa |
|
Power: |
20KW |
|
Dimension: |
1200*1360*1800mm (Length * width * height) Does not include wire rack |
|
Weight: |
600kg |
(5) Picture show

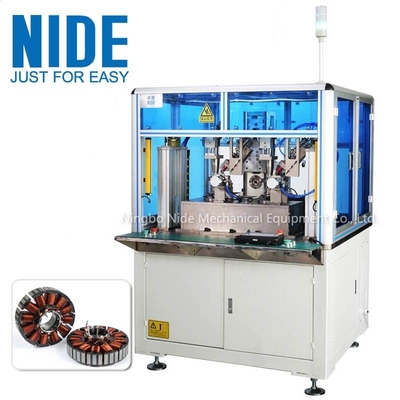

1.The rotor coil needle winding machine show
2.The blower motor rotor after needle winding
Motor armature rotor manufacturing assembly line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine, ball bearing inserting machine, and worm shaft inserting, NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
