Automatic BLDC motor coil winding machine stator needle winding machine
(1)Application:
This type of stator needle winding machine is suitable for multi-pole stator stepping motor and Brushless direct current motor.
(2)Competitive advantages:
1.The needle winding machine will auto do winding and wire will auto go through.
2.And just Loading, unloading, clamping should be done manually.
3.Variety of application, easy operation.
4.This needle winding machine is controlled by PLC. All the parameter could be set on the touch screen,
5.The stator winding machine is suitable for rotor or stator with different model number and dimension.
6.The operation and tooling change process is easy.
7.We could customize machine for our customer as per their requirement.
8.We have Overseas Service Center.
(3) Main technical parameter:
| Production name: | BLDC motor coil winding machine stator needle winding machine |
| Stator O.D: | ≤150mm |
| Wire range: | 0.10-0.65mm |
| Stator stack length(including bobbin): | 5~100mmm |
| working station: | single |
| Stator slot width: | ≥1.5mm(adjust as per the wire diameter) |
| Winding speed range: | 0-400rpm |
| Wire diameter: | ≤0.8mm |

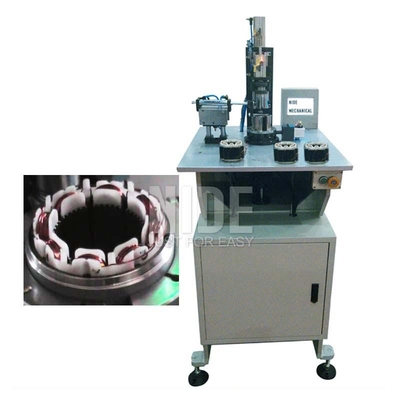

The needle winding machine picture
Information needed for Automatic Stator Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.
uk,Brushless Motor bldc winding equipment uk,fully automatic bldc winding equipment uk
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
