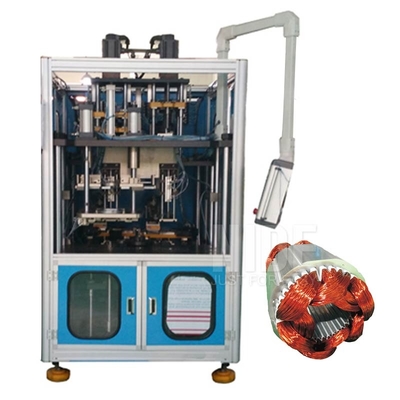

This coil winding and inserting machine can automatically do coil winding, coil inserting and wedge inserting. It has four working stations. Two of the working stations are for stator coils winding. The other two are used for coil and wedge inserting. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer. This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen. With serval station working simultaneously, this machine is efficiency and saves labor cost.
Application
This Automatic stator coil winding and coil inserting machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.
Main technical data
| Stator OD | ≤φ150mm |
| Stator ID | ≤φ110mm |
| Stack Height | 30-120mm |
| Height of Coil | 3 |
| Appropriate Wire | φ0.18-φ1.2mm |
| Winding inserting mode | chained /same core |
| Pitch time | ≤40s/pc |
| Air Pressure | 0.6-0.8MPa |
| Power supply | 380V 50/60Hz 15Kw |
| Weight | 4000Kg |
| Dimension | (L)2000×(W)1300×(H)2300mm |
The coil inserting process is generally the most time consuming element in the manufacture of a stator for an electric motor. It is equally important that the coils are well protected during coil insertion process. In order to offer our customers the perfect solutions, Nide well constructs its machines, even the tooling, which is manufactured to an extremely high standard and well polished and treated to give perfect results.
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
