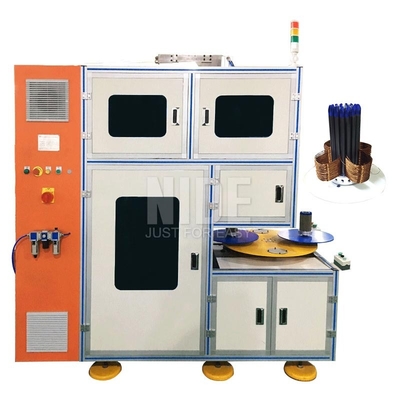

NIDE FULL automatic two working stations stator coil winding machine
(1) Application of NIDE FULL automatic two working stations stator coil winding machine
This stator coil winding machine is suitable for 2 poles, 4 poles and 6poles coils winding.
(2) Main technical data of NIDE FULL automatic two working stations stator coil winding machine
| Product Name | two working stations stator coil winding machine |
| Winding head | 1pc |
| Wire diameter | 0.2~1.2mm |
| Winding speed | ≤2500RPM |
| Max stator OD | 160mm |
| Max stack height | 100mm |
| Fly fork diameter | 300mm |
| Transfer number | 1~5 section |
| Power supply | 380V/50/60HZ 7KW |
| Weight | about 1000kg |
| Dimension | L2400*W1000*2450mm |
(3) Machine main function and characteristic of NIDE FULL automatic two working stations stator coil winding machine
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
