(RXL4-100) 8 Working Station Stator Coil Winding Machine for air condition motor
(1) Machine main function and characteristic
This stator coil winding machine has four winding heads with 8stations.Hight efficiency is the biggest advantage.The coil winding machine can put coil into transfer tool automatically,especially suitable for high fill factor,small slot opening stator;auto skip,auto cutting,auto indexing could be completed at one time,parameter can be set in HMI,winding tension is adjustable,has continuous/discontinuous winding method,can meet the 2poles,4poles,6poles coil winding.
Mature and advanced technology,reliable quality,easy operation and maintenece.
(2)Application
The stator winding machine is suitable for air conditoner motor,washing machine motor,compressor motor,fan motor,pump motor etc.
(3)Technical paramenter
| Production name: | 8 stations stator coil winding machine |
| Wire diameter: | 0.19~1.2mm |
| Flyer diameter: | 220mm |
| Max stack height: | 65mm |
| Max stator OD: | 130mm |
| Max RPM: | 2500RPM |
| Air source: | ≥0.5MPa |
| Operation station: | 8 |
| Winding head: | 4 |
| Power supply: | 380V 50/60HZ 15KW |
| Weight: |
about 4500KG |
| Dimension: | (L)2400*(W)1900*(H)2250mm |
The above data is for reference only, please contact us for detailed data,
our machine can be customized according to customer's needs.

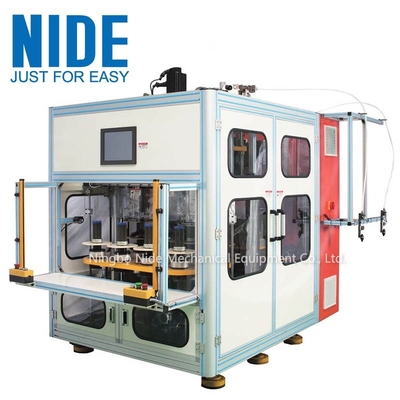

(4)The stator winding machine picture
