Full automatic advantages of binding machine
Main Functions
.The system provides Chinese/English free switch operation interface on a 7 inches imported touch screen,
.Apply to single-end / double- ends ,AC power cord,DC power cord , Video line,HDMI ,USB wires,
.Auto and fast binding after Stepping on foot switch ,
.Wire length(Head length, Tail length,Total binding length) , coil number,speed,quantity can be set ,
.Easy to operate
.Save labor cost and improve output,
.Adopted PLC program control , 7 inches touch screen for setting parameters,
.Provide personalized customization according to different requirements,

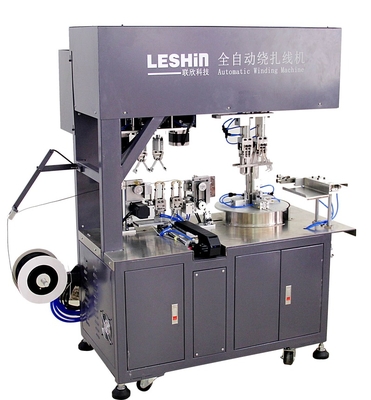

product photos:
Specification & Parameters
|
Model |
LX-380A/B |
|
|
Scope of application |
AC power cord,DC power cord , Video line,HDMI ,USB wires |
|
|
Length |
LX-380A |
LX-380B |
|
≥0.6m-15m Head/end 0-200mm (can be customized) |
≥0.6m-3m Head 0-430mm end 0-500 (more) (can be customized) |
|
|
OD & Outline |
1.5mm≥OD≤8.0mm round ,oblate, textile, winding |
|
|
Line spacing size |
60-200 mm |
|
|
Coil number |
Adjustable |
|
|
Production efficiency |
Max AC ≥1800/h DC 1900/h |
|
|
Type |
Single |
|
|
Control Screen |
7 inches imported touch screen |
|
|
Power |
3 KW |
|
|
Air pressure |
≥5 kgf / m2 |
|
|
Voltage |
220 VAC 12A 50/60HZ |
|
|
Weight |
300KG |
|
|
Dimension |
970(L) *560(W)*1600(H) |
|
|
Safeguard |
Against leakage,short circuit , overheat |
|
