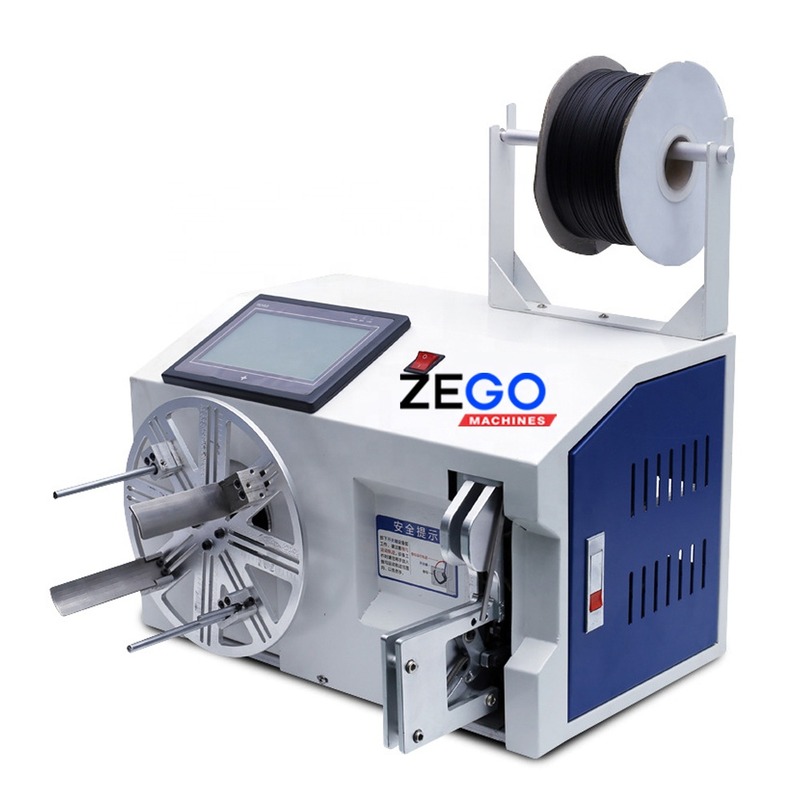

ZEGO MACHINES automatic coil round automatic wire winding and bundling machine
1. The machine is controlled by PLC or controller and touch tone display.
Speed of winding cable, number of circle can be set up at random according to users’ requirement.
2. This machine can display actual production quantity at any time, also set up quantity of each carton. When the quantity reaches setting quantity, machine will automatically alarm and shut down.
Features:
1. Semi-automatic winding&binding, machine takes advanced technology and precision manufacturing, winding and tieing AC cable, DC cable, data line, video cable, other electric wires and twisted bundles. Wire heads can be on one side or two sides. Winding and tieing are complete at one time.
2. This work efficiency is three to four times faster than working by hand. Ending the history of huge labor and hurting fingers as well as saving high cost of owner.
| Model | ZG-SB 530 | ZG-SB 830 | ZG -SB 1845 | ZG-SB 4080 |
| Winding shape |
O-shaped 8-shaped |
O-shaped 8-shaped |
O-shaped 8-shaped |
O-shaped 8-shaped |
| Winding plate diameter | 220mm | 320mm | 350mm | 380mm |
| Binding diameter | 5-30mm | 8-30mm | 18-45mm | 40-80mm |
| Twist tie length | 50-130mm | 60-260mm | 90-300mm | Min. 210mm |
| Voltage | AC220V /50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| Equip with | 1 roll of twist tie | 1 roll of twist tie | 1 roll of twist tie | 1 roll of twist tie |
| Operation panel | Buttons and LCD, or Touch screen | Buttons and LCD, or Touch screen | Buttons and LCD, or Touch screen | Touch screen |
