Features

Specifications

Condition: New

Max. Load (KG): 640 KG

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear

Coil Type: Transformer Coil

Length Of Axis (mm): 70 Mm

Center Height (mm): 1400 Mm

Max.Transformer Capacity(kVA): 220 KVA

CNC Or Not: CNC

Motor Power (kw): 3000

Weight (KG): 640

Dimension(L*W*H): 1300(L)x1000(W)x1400(H)

Wire Diameter Range (mm): 0.02 - 0.4 Mm

Warranty: 1year

Key Selling Points: Famous Brand PLC

Applicable Industries: Manufacturing Plant

Showroom Location: None

Wire Range: 0.02-0.4mm

Max.wire Diameter: 26

Traverse Speed: 200

Air Pressure (Mpa): 0.45-0.55

Name: Electronic Transformer Automatic Winding Bushing Integrated Machine

After Warranty Service: Video Technical Support

Local Service Location: None

Basic Infomation

Payment & Shipping Terms

Packaging Details: Inspection-free wooden box packaging

Product Description

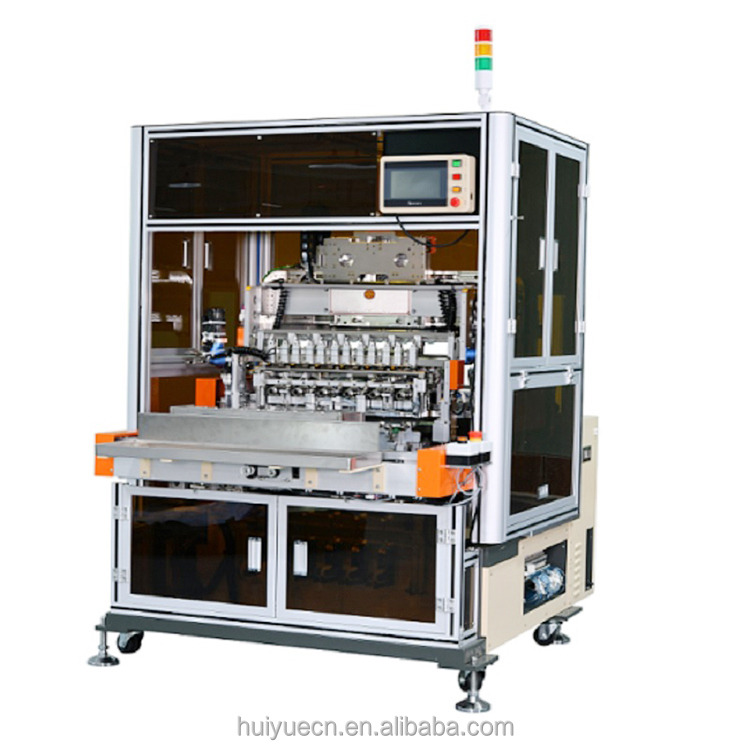

HY-CTG06 Electronic transformer automatic winding bushing integrated machine

The key parts are all imported from Japan, with strong reliability and high durability, which greatly increases the service life of the machine
The cylinder and solenoid valve adopt Japanese SMC, the main screw rod, the guide rail is Japanese THK, the servo motor is Japanese Panasonic, and the bearing is SKF
The appearance design is novel, the structure is simple, the rigidity is strong, the operation is simple, and the maintenance is convenient
Programming adopts computer or touch screen, which can be selected freely, and the Chinese display is easy to understand
Unique design of quick joint fixture to reduce changeover time
It can realize multiple functions such as foot wrapping, flying lead, casing, rubber coating, etc.
Use precision belt anti-tension control tensioner to make the product line more neat
With optional automatic loading and unloading function, it can greatly save winding time
It has the function of optional automatic tape wrapping, which greatly improves production efficiency
With the functions of automatic clamping, disconnection, and removal of waste lines
Password protection function to prevent non-related personnel from modifying the program
Can have casing detection function and automatic casing positioning function to prevent leakage through casing

Electronic transformer automatic winding bushing integrated machine
Spindle number	6
Spindle speed	12000 (rpm)
Spindle pitch	50/70 (mm)
Spindle servo motor power	3000 (W)
Traverse motor power	X:400, Y:400, Z:400 (W)
Spindle diameter	standard:10 special:12 (mm)
Wire range	0.02-0.4mm Add air pressure scissors and replace the motor Can be around 0.4mm or more
Max.wire diameter	45/65 (mm)
Traverse moving range	X:110, Y:150, Z:70 (mm)
Traverse speed	250 (mm/sec)
Controller	HY-3
Power voltage	220V,50/60 HZ (V)
Power voltage	3000W
Air pressure	0.45-0.55 (Mpa)
Machine size	1300(L)x1000(W)x1400(H) (mm)
Machine weight	650 KG

Electronic transformer automatic winding bushing integrated machine
