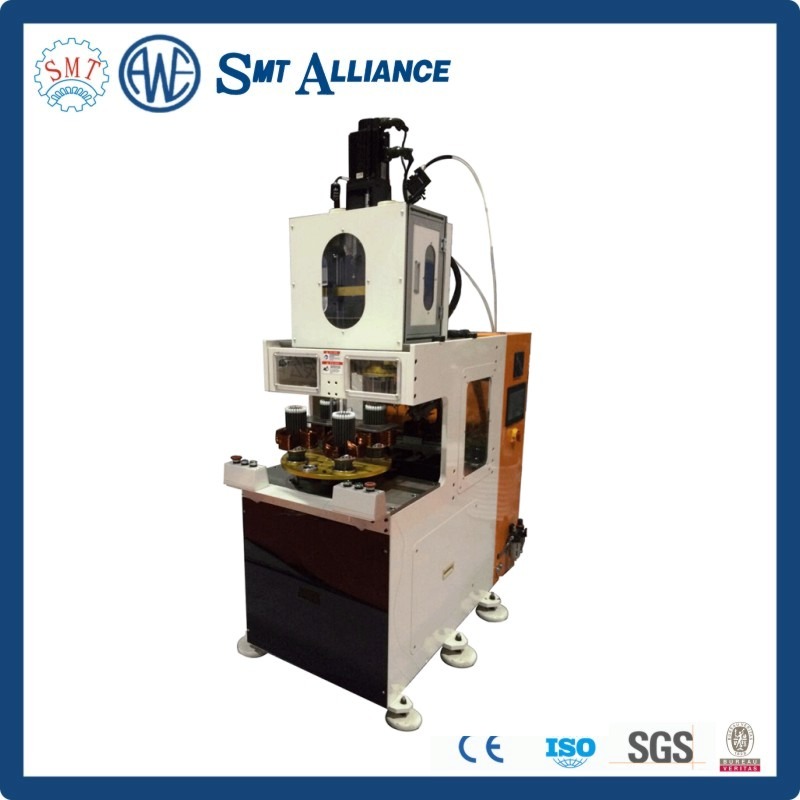

Toroidal transformer coil winding machine / core winding machine
Main Feature:
Six spindles are controlled by sero motors ,Double winding head and four stations wind two phase at a timne , which can wind single multiple wires .
1.Auomtic put the coi into trasfer former orderly .
2.Especially sutiable for high slot filling rate,small notch stator .
3.Winding mode such as automatic skip, automatic cutting and automatic indexing canbe finished at a time successively
4.Parameter could be set in human-machine interface ,winding tesion is adjustable
5.Obtain continuous/discontinupus winding wy and meets the 2poles,4 poles and 6poles coil winding
Technical Parameter:
Model | SMT-LR100 SMT-LR150Ⅰ SMT-LR150 Ⅱ SMT_LR200 | SLR70 | QLR70 |
Winding Head | 1 1 1 1 | 2 | 4 |
Wire Diameter(mm) | 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 | 0.2~1.0 | 0.2~1.0 |
Unload Speed | ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min | 3000 | 3000 |
Stack Height | ≤80mm ≤120mm ≤150mm ≤230mm | ≤70mm | ≤70mm |
Winding Precision | + 0 + 0 + 0 + 0 | + 0 | + 0 |
Power Supply | 380v/50/60HZ 8Kw 8Kw 9Kw | 7Kw | 7Kw |
Air Pressure | ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa | ≥0.6pa | ≥0.6pa |
Weight | ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg | ≈1950Kg | ≈2300Kg |
Dimension (L×W×Hcm) | 180×110×200 180×120×220 180×130×230 220×180×250 | 180×130×205 | 135×100×180 |
More Winding Machines
Coil inserting machine and lacing machine
1. Single plastic warp then vacuum packing and packed in plywood case .
2. Delivery with in 60days after getting your deposit .
Customerized service:
Based on your production needs
1. Design the suitable product or production line for you ,OEM and ODM available.
2. We have professional and rich experience engineers in the domestic and overseas.
3. We will wind and test the samples in our plant before delivery
After-sales service:
1, Warranty Period: 1 year
2. Engineers available to service machinery overseas
