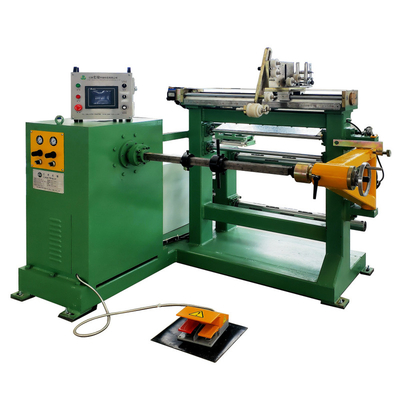

Home /Products/Transformer Winding Machine/energy & ZBR-800 High Quality Automatic Transformer Foil Mining Winding Machine For High Voltage Coil Making

energy & ZBR-800 High Quality Automatic Transformer Foil Mining Winding Machine For High Voltage Coil Making

1 Set
MOQ
$16,800.00(>=1 Sets)
Price
energy & ZBR-800 High Quality Automatic Transformer Foil Mining Winding Machine For High Voltage Coil Making
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Max. Load (KG): 500 KG
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor
Coil Type: Rectangular /Round
Length Of Axis (mm): 850 Mm
Center Height (mm): 850 Mm
Max.Transformer Capacity(kVA): 200 KVA
CNC Or Not: CNC
Motor Power (kw): 3
Weight (KG): 2100
Dimension(L*W*H): Custom
Wire Diameter Range (mm): 0.2 - 3 Mm
Warranty: 1 Year
Key Selling Points: High-accuracy
Applicable Industries: Energy & Mining, Retail, Manufacturing Plant
Showroom Location: None
Product Name: Automatic Coil Winding Machine
Model: ZBR-800
Coil Width: 800 Mm
Central Height: 850 Mm
Flat Wire Spec: 5X12 Mm
Round Wire Spec: 0.2~3 Mm
Winding Speed: 240 RPM
Winding Power: 4 KW
Delivery Time: In 45 Working Days
MOQ: 1 Set
Basic Infomation
Model Number: ZBR-800
Payment & Shipping Terms
Packaging Details: With Plastic Film Package or As Per Client's Requirements.
Supply Ability: 200 Set/Sets per Year
Product Description
Production Description
Typical standard specifications are shown below, these can be easily modified as requested.
No.
Item
Data
1
Models
ZBR-1200
ZBR-1000
ZBR-800
ZBR-600
2
Coil width(mm)
1200
1000
800
600
3
Central height(mm)
1250
1050
850
850
4
coil material
Cu/Al
Cu/Al
Cu/Al
Cu/Al
5
Round wire Spce
0.2~3 mm
0.2~3 mm
0.2~3 mm
0.2~3 mm
6
Flat wire Spec.
5X12 mm
5X12 mm
5X12 mm
5X12 mm
7
winding speed
0~240 RPM
0~240 RPM
0~240 RPM
0~240 RPM
8
winding power
5.5 KW
5.5 KW
4 KW
4 KW
11
Rectify mode
Automatic
Automatic
Automatic
Automatic
12
welding way
TIG
TIG
TIG
TIG
If you want to know more, please contact us immediately! We will give you more detailed product information you need.
