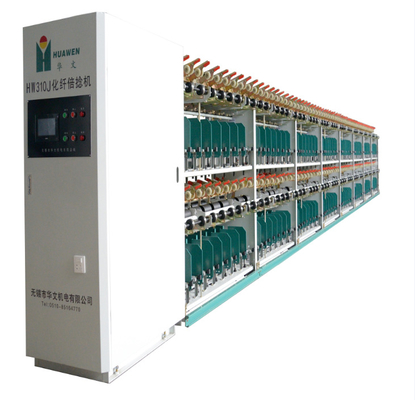

Two for one twister for filament yarn/ Yarn twisting machine for filament yarn
Product Description:
This machine is mainly used in lace silk, silk of pines, green silk, cloth for automobiles and other pre-process of endless straight or net twisting. The machine is easy to operate with nice stability, good forming and moderate tension.
Main Specification:
|
1 |
Spindle number |
Standard 256 spindles |
|
2 |
Spindle type |
Φ90 Conical Spindle |
|
3 |
Spindle gauge |
225mm |
|
4 |
Section gauge |
1830mm |
|
5 |
Brake mode |
Manual brake |
|
6 |
Spindle drive |
Dragon belt tangential cycle drive |
|
7 |
Spindle speed |
6000~10000r/min |
|
8 |
Twist range |
350~3600T/m; Customized at lowest 120 T/m |
|
9 |
Twist direction |
S way or Z way |
|
10 |
Unwinding bobbin specification |
Φ110×Φ42×L270~320 |
|
11 |
Winding capacity |
About 1200g |
|
12 |
Winding method |
Flangeless bobbins cross winding as cylindrical, or customized as Pagoda bobbins or customized as three taper bobbins. |
|
13 |
Forming mode |
Mechanical forming(forming box) |
|
14 |
Winding stroke |
152mm |
|
15 |
Winding tubes |
3°42` , 4°20` and straight tube: φ62×φ56×175 |
|
16 |
Winding angle |
10°51´~23°19´ |
|
17 |
Starting mode |
Y-Δ slow starting |
|
18 |
Tension device |
Multi tension ball and tension ring using together |
|
19 |
Max. Winding dia. |
210mm (Flangeless bobbin) |
|
20 |
Winding tension |
Overfeed adjustable |
|
21 |
Dragon belt tension mode |
Motor moving type |
|
22 |
Motor power |
7.5kw× 2 |
|
23 |
Max. Winding speed |
60m/min |
|
24 |
Operation mode |
Double sides, double layer |
|
25 |
Application |
50D~1000D chemical fiber |
|
26 |
Working environment |
Relative humidity W≤85%, Temperature ≤30℃ |
|
27 |
Overall dimension |
16810×750×1950(L×B×H) |
Customer Visiting:
FAQ:
Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.
What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco,Indonesia and so on.
What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.
How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.
Packaging & Shipping:
We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into the container.
