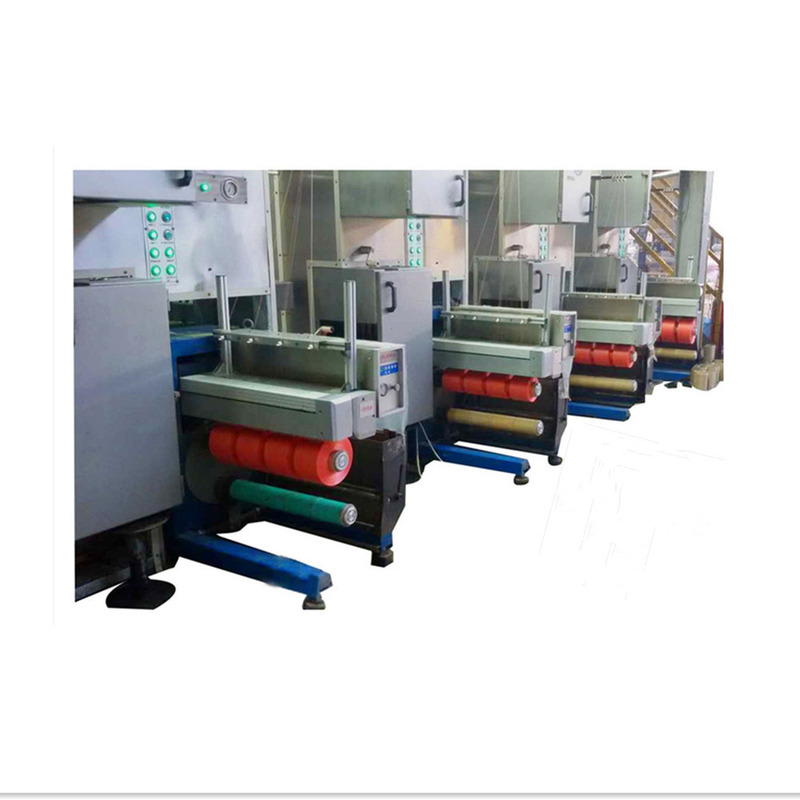

automatic bobbin change pp filament winding machine pp fdy yarn winder picture and peremater showing :
The advanced heat treat ment , alloy spraying equipment ,vacuum hardening furnace and cementite oven and chrome
plating workshop insure products have higher quality .
High speed automatic doffing yarn winding machine fdy pp yarn winder for FDY running 1200-2800m/min .
BCF winder running speed 1000-2500m/min . for polyester yarn running speed 2500-3500m/min .
Winder design with tail yarn device . convenient for next process .
For bobbin size ¢110*¢124*200mm(115mm ) , most popular size is 230mm lenght with loading capacity of 13kgs .
Electric cable design 12 meters length , its convenient for put the electric cabinet every where far from the winder machine .
Electric cable design 12 meters length , its convenient for put the electric cabinet every where far from the fdy automatic doffing winder machine .
4 ends winder and 6 ends winder been running 10 years ,still very good performance .
6 ends winder side view . easy operate and high high machining accuracy
Electric parts adopt YASKAWA , SIEMENS,MITSUBISHI brand . its easy for customer source from local .
automatic doffing yarn winding machine fdy pp yarn winder parameter:
|
winder model |
speed (m/min) |
tube size | Applications | ends number | chuck length(mm) | stroke length(mm) | volume(dm) |
|
JM435/6 |
1200-2800
|
75*89*100 | PP PET PA6 | 6 | 600 | 73 |
7.0 |
|
JM435/4 |
1200-2800 | 75*89*150 | PP PET PA6 | 4 |
600 |
120 |
11.5
|
|
JM435/3 |
1200-2800 | 75*89*200 |
PP PET PA6 |
3 | 600 | 170 | 16.3 |
|
JM435/2 |
1200-2800 | 75*89*300 | PP PET PA6 | 2 | 600 | 250 | 23.9 |
TAIAN JIAMEI MACHINERY TECHNOLOGY CO.LTD
We are professional fdy yarn & components manufacturer . winder is a main parts of spinning machine .
Our winder products have very good performance and durable lifetime .with more than 15 years of export experience ,
our winder products getting more and more mature and best feedback from customer .
engaged in filament extrusion machinery for 30 years ,workshop with area 8000 square meters.
Certification :
Our advantage
1. Have skilled worker available come to support customer for this project , stay at customer,s factory 3-6 months .
2. Have our own yarn production factory , the customer can come and learn machine orperate at our yarn factory
3. Have two kind of drawing system for customer select , godet type and air oven type ,
4. Export to Russia ,Ukrine,European ,India etc , we have professional team including engineer ,worker and sales for 24hr service.
5. Convinient for testing running before delivery .
Aftersales work :
Come engineer help set up machine ,take 10 days for assemble and trainning . 3-4 days for set up,5-6 days for training .
The customer should prepare 3-5 workers for learn and operate the machne .
With online device ,our team is 24hr at your service .
Finished yarn products :
On the exibition :
