Product introduction(JK-RX51C):
Automatically inserts the wires into commutator slots, winds, clamps wires, cuts wires, electric controlled tension, fast molds and workholding reloading, could store parameters of 20 product types. It can achieve a variety of winding modes through parameter setting. It can be on-line used, realize automatic feeding and unloading, also can be manual feeding and unloading. Wide range of application and rotor types.
1. Table panel, spindle box, box seat all adopt fine casting parts, high processing accuracy, strong, good shock absorption.
2. Part of moulds and workholding manufactured by special precise mold factory. The moulds and workholding adopts special material,through special heat treatment process, high machining accuracy, good wear-resisting performance.
3. The whole equipment can complete quick mold and workholding reloading.
4. Tension mechanism has electric control magnetic powder resistance device controlling the tensions of each stage in the winding process. The cylinder and proportional valve control take-up rebound and wire feeding’s tension, and make it balance with line tension. The tensions of each stage and the cylinder in the winding process can be set through the touch screen.
5. The principal machine(winding machine) can automatically embed the wires into commutator slots, wind, clamp wires, cut wires, with high efficiency.
6. Touch screen operation display, convenient operation, powerful function, could edit, copy and name a group of winding methods. It could store 20 different types of rotor winding methods through the parameter setting.
7. It adopts Japanese latest Omron PLC control system, stable program, complete interlock protection, reliable action harmony, high efficiency, multi function, is suitable for many different kinds of wire winding modes.
8. There’s compensation for translocation mechanical initial positioning, convenient adjustment. Servo accurate translocation indexing.
9. Riveting knife and wire cutting knife are convenient to adjust the position, accurate positioning.
Technical Data:
| 1.Overall dimension | 2129*1703*1536mm |
| 2.Weight | 1000kgs |
| 3.Inputvoltage | 3 phase 380V AC±10% |
| 4.Input air pressure | 0.5-0.7MPa |
| 5.Rotor stack height | 20-60mm |
| 6.Rotor slot number | over 8 slot, even slots |
| 7.Rotor outer diameter | Φ20-Φ71mm Judging if could do or not, machine standard changes |
| 8.Rotor shaft length | 60-200mm Judging if could do or not, machine standard changes |
| 10.The wire diameter | Φ0.5-Φ1.0mm middle, thick |
| 11.Transmission system | maximum 3000RPM no load condition), rated speed 2000RPM |
| 12.Material loading and unloading form | manual |
| 13.Slot wire inserting way | according to winding mode diagram and real object |
| 14.Wire elastic medium, no wire damage, no wire off phenomenons | |
| 15.The brine test for winding products within 10mA | |
| 16.Safety indexes of equipment comply with CE standard | |
| 17.Efficiency | 45-50 s/pc 16 slots / 32 hooks / 10 turns |
| 18.Noise | under 60-70db |

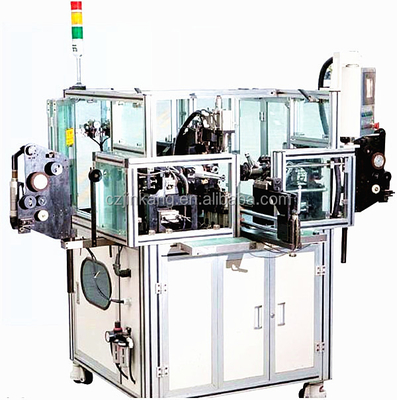

Product show (JK-RX51C):
Product details (JK-RX51C):
HMI panel
Panasonic PLC control systemwinding tooling
finished rotor
The outer packing(JK-RX51C):
Product scheme(JK-RX51C):
Other types of products:
Certificate:
Company profile:
Changzhou JinKang Electromechanical Group is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 300 employees, including more than 50 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2008, Jinkang passed the certification of ISO9001:2000 Quality Management System.
Research and development :
The full-time R&D team is led by industry expert Mr. Cheng Bing, including 4 senior engineers, 10 engineers & 5 assistant engineers.Changzhou New District Jinkang Precision Mechanism Co., Ltd. has set up a good management system oftechnical innovation and an incentive system of R&D staff performance assessment. Changzhou New District Jinkang Precision Mechanism Co., Ltd. always provides strong financial support for R&D activities.
Partners:
During the past over 10 years,we have cooperated with a lot of customers domestic and abroad,some of which are well-known companies,such as A.O.Smith,Emerson,Siemens,Panasonic,WEG,Bosch etc,and our market has expanded from Asia to Mid East,Europe and South America.
Equipment spare parts:
Service:
OEM supplier
Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
Jinkang—Professional, Quality, Service.
