Automatic Factory Motor Armature Rotor Winder Machine

Automatic motor armature rotor winder

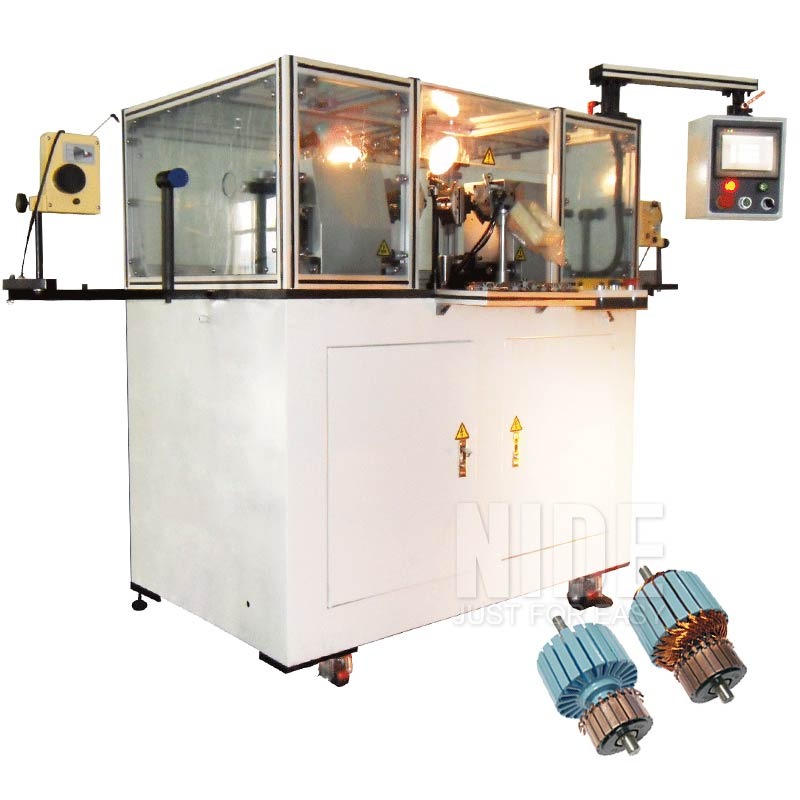

This automatic hook type armature winding machine is suitable for winding medium and big wire diameter armature, especially for hook type commutator armature . The winding process such as automatic feeding, winding,indexing and wire cutting, can be done by this armature winding machine automatically. Operator only needs to do load and unload armature from material loader. Equipped with touch screen and PLC, winding parameter could be set and modified on the screen. We could also produce machine as per customer's requirement. We also have armature winding machine equipped with conveyor, operator only need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically.

Technical Parameter:

Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.

The operation steps of this machine
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

Common malfunction of this machine
Sometimes, there is servo alarm displayed on the touchscreen. In this case, there will be error code displayed on the servo driver(at the backside of machine), you could identify the problem according to the error code. The most common malfunction is the encoder cable which connects the servo driver and servo motor is loose, just need remove and reinsert the encoder cable again, problem will be solved.
