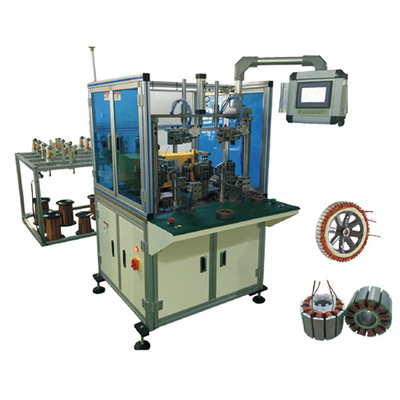

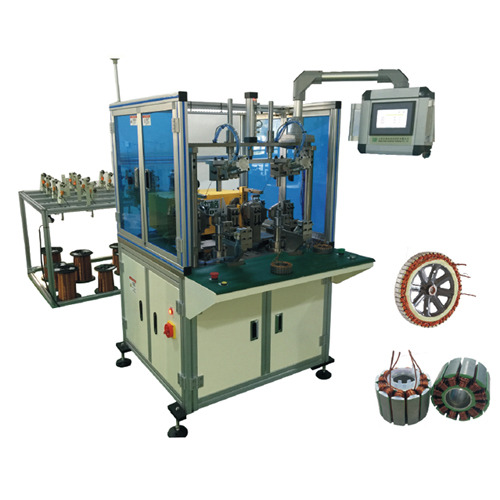

This type of stator coil winding machine is suitable for wheel motor, electric bike coil to do winding. The winding process is done by machine automatically. It has two working stations.
It equips with the servo control system. It could diagnose the fault, count the output, etc. The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed. The machine is easy to operate and maintain.
Technical parameter:
|
Wire diameter
|
0.2~1.3mm |
| Stator OD | 80~200mm |
|
Winding number |
1~9 pcs |
|
Stator height |
18~35mm |
|
Power supply |
220V/ 50/60HZ 1.5KW |
|
Weight |
700kg |
|
Dimension |
1300*800*1500mm |
Information needed for wheel motor Coil Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.
Operator step
1. Power on the machine
2. Thread wire this this motor
3. Set the winding parameter in the touch screen
4. Press the "start" button.
5. Machine will do winding process automatically
6. After finishing the winding, machine will stop
7. Take out the wire from the tooling.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
