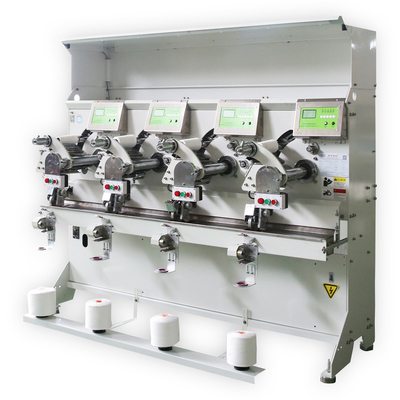

GH019-HA Automatic 6 Inch A Cone High Speed Winding Machine
Function features:
High speed winding machine is applicable for the winding various raw material thread such as sewing thread, embroidery thread, nylon thread etc. It has the structures such as the independent computer control of each spindle, variable frequency speed governor, grooved drum thread feeder, electromagnetic tension control, oil pump cyclic oiling device etc. It features as good looking, high efficiency, easy operation, assured safety and reliability and broad applicability, etc.
|
Parameter No. |
Name |
Range |
|
0 |
Password |
0000~99999 |
|
|
Setting Parameter value |
|
|
1 |
Full bobbin length |
0~30000 (m) |
|
2 |
Thread winding speed |
200~1000 (m/min) |
|
3 |
Oil wheel speed ratio |
30~2000 |
|
6 |
Starting tension |
0~100% |
|
7 |
Ending tension |
0~100% |
|
8 |
Yarn detector condition |
0.0~9999″ |
|
9 |
Empty bobbin position confirmation |
Computer test value |
|
10 |
Positioning confirmation |
Computer test value |
|
11 |
Length correction coefficient |
0.800~1.200 |
High speed winding parameter table on the top board
High speed winding main specification
|
Model |
SA |
ST |
SY |
|
Shape formation |
Cone-type |
Column shaped |
Horn-type |
|
Tube angle |
0°~2°20′ |
0° |
0° |
|
Max. Winding diameter |
Φ115mm |
||
|
Spindle number |
4 |
||
|
Maximum drum |
1000m/min |
||
|
Pattern round number |
3~4 |
||
